BGBP10H

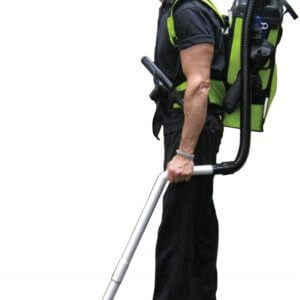

A commercial vacuum designed for all-around use.

• Non-clogging hose with particulate deflector
• Built-in cord wrap
• Lifetime housing warranty
• Cool-air channels eliminate heat transferring to your back
• Motor-saver increases air-flow even when your bag is full with debris
• Improved motor mount with anti-spin retaining fins
• Waffle noise suppression for whisper-quiet operation
• 7-years motor warranty Ametek-Lamb with thermal shut-off
• 50 ft. illuminated power cord
• Cord retainer
• Filtration removes dust, pollen, pet dander and mold down to 0.3 microns
• Padded ergonomic backrest
• Crush proof anti-static hose

• ModelBGBP10H
• Capacity10 quarts
• Weight 10.8 lbs
• 50′ Power Cord (16 gauge)Yes
• Power (Watts)1328
• Amps11.4
• Airflow (CFM)152
• WarrantyLimited 1 year
• UPC811827022898

• BGPKBP10.6QT Backpack Bags #BGPKBP10.6QT $21.95 Add to Cart
• 1 10 Quart Backpack Housing (Body) #700‐BP10B $0.00 Add to Cart
• 2 Vacuum Super Motor #500‐0003 $110.85 Add to Cart
• 2 Vacuum Aviation Motor #500‐0056 $188.76 Add to Cart
• 3 10 Quart Lid #700‐BP10L $33.95 Add to Cart
• 4 Vacuum Hose (4ft x 1‐1/2in.) #201‐0009 $36.79 Add to Cart
• 5 Hose Cuff ‐ Swivel #900‐0010 $8.73 Add to Cart
• 6 Rivet/Screw (Hose to Lid) #100‐0003 $0.51 Add to Cart
• 6a Tee Nut (not pictured) #100‐0002 $0.51 Add to Cart
• 6b #8 Black Oxide Washer (not pictured) #100‐0004 $0.51 Add to Cart
• 7 10 Quart Cloth Bag w/ Gasket #900‐0001 $20.43 Add to Cart
• 8 10qt. Ultimate HEPA Micro Lined 3‐ply Sonic Sealed Bag (10/p #273511 $22.23 Add to Cart
• 9 Gasket (motor to housing) #650‐0002 $4.60 Add to Cart
• 10 Mounting Ring for Motor #600‐0004 $4.60 Add to Cart
• 11 Well Nut Washer #100‐0001 $0.53 Add to Cart
• 12 Well Nut #100‐0022 $3.17 Add to Cart
• 13 Screw for Well Nut #100‐0011 $0.51 Add to Cart
• 14 Motor Finger Guard #600‐0001 $5.66 Add to Cart
• 15 #10 x 5/8″ Hex Tapping Screw #100‐0030 $0.51 Add to Cart
• 16 Shoulder and Waist Belt #800‐0005 $98.03 Add to Cart
• 17 Screw for Shoulder and Waist Belt #100‐0010 $0.59 Add to Cart
• 18 Backrest Pad #650‐0001 $2.56 Add to Cart
• 19 On/Off Rocker Switch #400‐0004 $5.93 Add to Cart
• 20 Complete Pigtail Cord (Cord, Strain Relief and Nut & Connectors) #401‐0001 $23.66 Add to Cart
• 21 Strain Relief #400‐0005 $2.56 Add to Cart
• 21b Nut for Strain Relief #400‐0006 $1.02 Add to Cart
• 22 10 Quart Exhaust Filter #650‐0003 $29.02 Add to Cart
• 23 HEPA Dome Motor Filter #900‐0031 $20.35 Add to Cart
• 24 Screw ‐ Motor to Mounting Plate #100‐0028 $0.31 Add to Cart
• 25 50ft. Extension Cord #400‐0003 $46.01 Add to Cart
• 4” Upholstery Tool (Not Shown on Diagram) #900‐0009 $2.19 Add to Cart
• 14” Scalloped Floor Tool (Not Shown on Diagram) #901‐0028 $9.77 Add to Cart
• 17” Crevice Tool (Not Shown on Diagram) #900‐0008 $2.86 Add to Cart
• 56” Aluminum 2‐Piece 2‐Bend Wand (Not Shown on Diagram) #900‐0028 $38.61 Add to Cart
• 3” Round Dust Brush (Not Shown on Diagram) #900‐0007 $6.50 Add to Cart
• 14” Nylon Bristle Floor Tool (Not Shown on Diagram) #900‐0006 or 901-0029 $49.95 Add to Cart
• 5/8 Int Star Lockwasher (Not Shown on Diagram) #100‐0032 $0.72 Add to Cart
• Stainless Steel Nylock Nut (Not Shown on Diagram) #100‐0065 $0.31 Add to Cart
• Blue Ring Terminal Connector (Not Shown on Diagram) #400‐0009 $1.02 Add to Cart
• 16/14 Blue Female Disconnect (Not Shown on Diagram) #400‐0011 $0.82 Add to Cart
• #14 AWG TFFN Stranded Wire – BLACK (Not Shown on Diagram) #400‐0018 $0.51 Add to Cart
• Motor Saver Plate (Not Shown on Diagram) #600‐0023 $8.18 Add to Cart

• BGBP10H & BGBP06H Backpacks Spec Sheet
